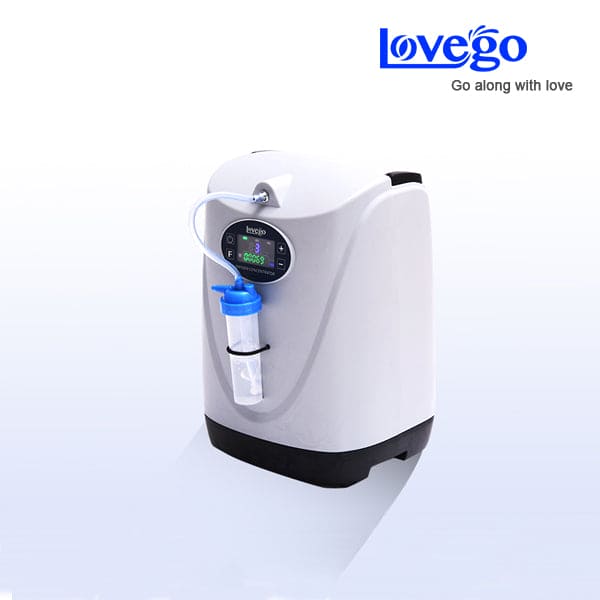

Portable Oxygen Concentrator with Battery (Li-ion) LG102P
PRODUCT DESCRIPTION
LG102P is a device that allows oxygen therapy to be carried out under any conditions at home or outdoors, for example, walking, car or plane.
- For people with circulatory insufficiency,
- For patients with breathing difficulties (in asthma, COPD),
- For people with sleep apnea,
- For athletes.
1. Oxygen Flow and Purity
LG102P produces 1.8LPM continuous flow and 4.5L pulse flow. And the oxygen concentration is 87-95%. It is ok for 4-5LPM Oxygen Therapy
2. Low Oxygen Alarm
Alarm will work to remind user when machine doesn't deliver oxygen. This alarm is a life Safety valve for you or your family.
Green Light=Normal,
Yellow=Caution <82%,
Red with Audible Alarm=Warning <72%
3. Battery Life
The lithium ion battery is rechargeable. Two fully batteries could support machine working 4 hours at any flows
4. Application
Work in the car/truck/yacht, at home, anywhere outdoors. Bring the real freedom to you
5. Super quiet design
≤ 40 dB (nominal) at flat table,≤45dB when travelling. Help you with a better sleep during the night
6. One Years Warranty, Local service is available
There are many people ignore after sales service when they buy from internet. If there isn't service station guarantee after sales service, you can't find a professional technician to fix it when machine has a problem.

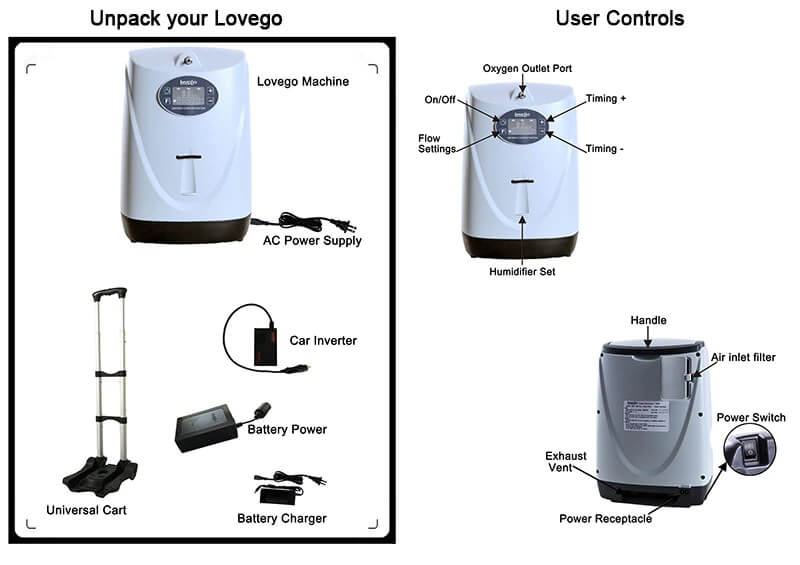

7. Standard Accessories

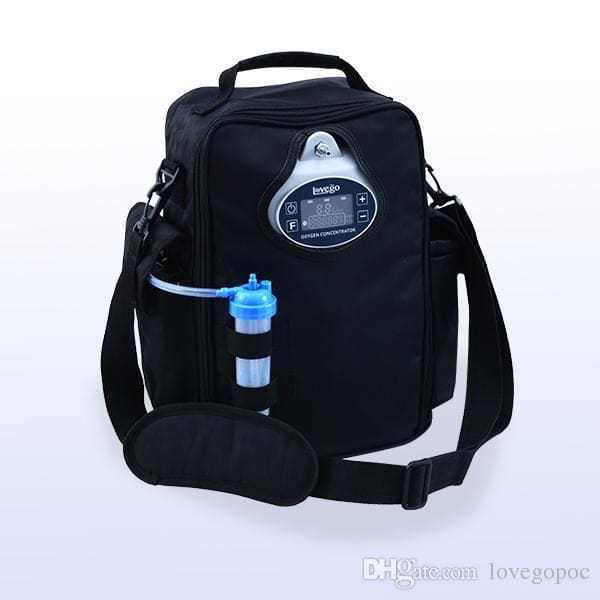

- 1x Carry Bag
- 1x Li-ion Battery
- 1x Battery Charger
- 1x Car Inverter
- 1x Oxygen cannula (2m)
- 2x Air Filters
- 1x Humidifier cup
- 1x Operating Manual (English)

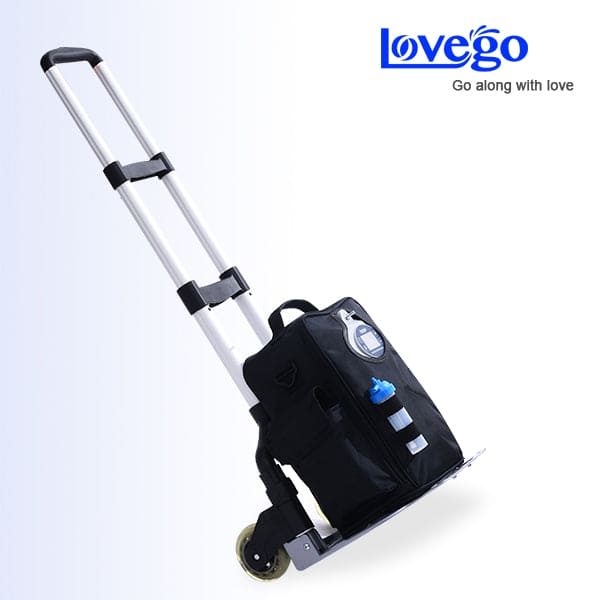

- 1x Free trolley as gift
Battery can run for 2 hours
Lovego oxygen cannula (it is optional, if not required, it won't be matched)
PRODUCT SPECIFICATIONS
|
Continuous flow |
1=1LPM, 2=1.5LPM, 3=1.8LPM
|
|
Pulse Flow |
2.5=42ml≈2.5LPM 3.5=58ml≈3.5LPM 4.5=42ml≈4.5LPM
At average of 20 BPM(±10ml) |
|
Oxygen Concentrations |
90%+5%/-3% at any settings
|
|
Outlet Pressure |
8.5 PSI |
|
Sound Level |
≤ 40 dB (nominal) at flat table,≤45dB when travelling. |
|
Size |
9.1 in x 8.7 in x 12.8 in (23 cm x 22 cm x 32.5 cm) |
|
Weight |
11.5 lbs (5.2kg) Machine only, 13.7lbs(6.2kg) with battery |
|
User Interface |
Push buttons, back-lit liquid crystal display (LCD) |
|
Filtration |
air inlet filter, bacteria filter |
|
Operational Temperature |
41° to 104°F (5° to 40°C) |
|
Relative Humidity |
15 to 95% |
|
Altitude |
Up to 12,000 ft (3657m) |
|
Storage Temperature |
-4° to 140°F (-20° to 60°C) unit only |
|
Relative Storage Humidity |
Up to 95%, non condensing |
|
Power Consumption |
90W~100W |
|
AC Power Input |
100 to 240 VAC, 50/60 Hz, 1.8 A max |
|
AC Power Output |
14.8 VDC, 8 A max |
|
DC Power Input |
Input 11. to 16.8 VDC 20 A max |
|
DC Power Output |
14.8 VDC, 8 A max |
|
Chemistry of Battery |
Lithium Ion 14.8 VDC (nominal) |
|
Battery Dimensions |
6.1 in x 3.4 in x 2 in(15.5 cm x 8.5 cm x 5 cm) |
|
Battery Charge Time |
Approximately 4 to 5 hours |
|
Battery Duration |
Two hours minutes at 1-5 any settings, extra battery is optional. |
|
O 2 concentration indicator |
Green Light=Normal, Yellow=Caution <82%, Red with Audible Alarm=Warning <72% |
|
Audible Alarm Sound Level |
55 dB (nominal) at 39 in (1m) |
|
Alarm type |
Loss of power, High temperature, Low Therapeutic O 2 Output |
F.A.Q
Delivery time
Please call us to check lead time for delivery.
