Aluminum Comfortable Wheelchair S-ERGO 105 | Karma

SKU MWKMM00916
Original price RM 1,414.00 - Original price RM 1,414.00
Original price
RM 1,414.00
RM 1,414.00 - RM 1,414.00
Current price RM 1,414.00
Seat: 16"

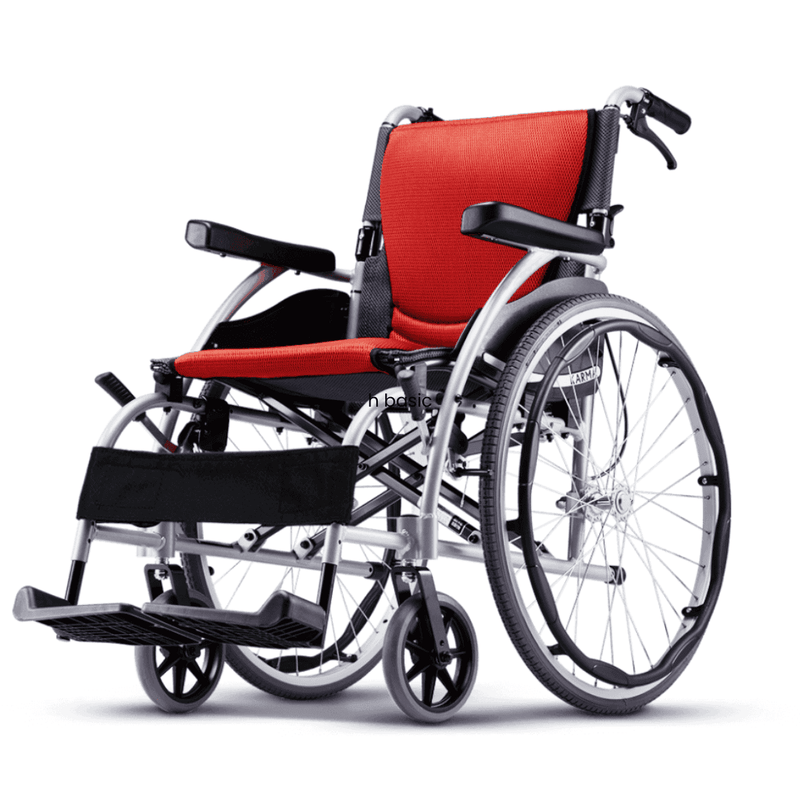

Karma S-ERGO105 Aluminum Wheelchair is an ultralight aluminum wheelchair, equipped with the world’s first innovative S-Ergo Seating System, that is designed according to the body’s natural curves. It evenly distributes the user’s weight from the hip bone to the entire length of the thigh, relieving pressure, encouraging proper body posture, and reducing the risks of developing pressure ulcers.

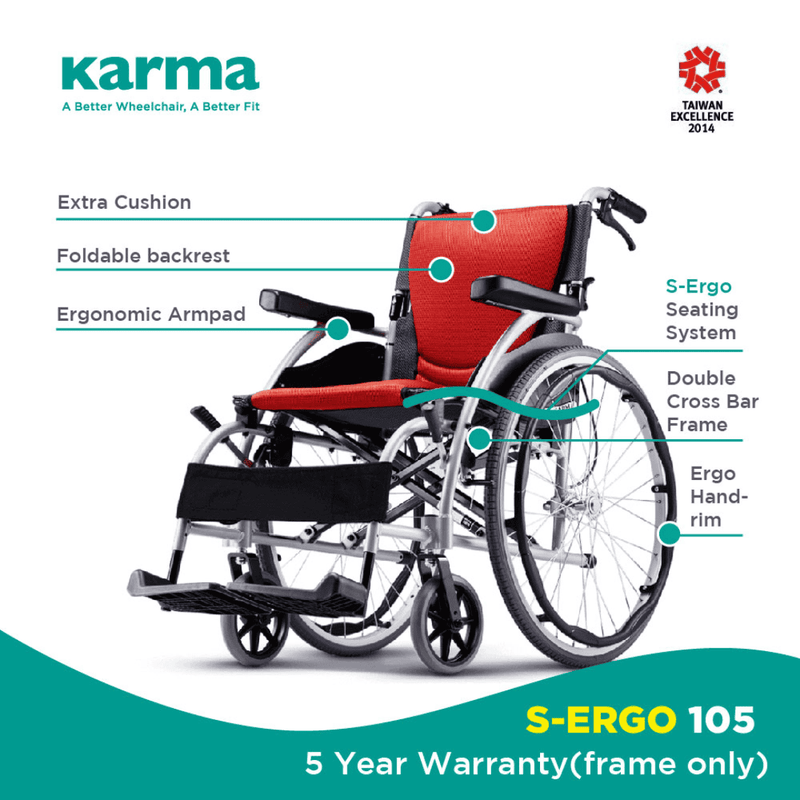

Product Features

  • S-Ergo Seating System – The seating provides the wheelchair user with basic pressure relief without having to purchase a foam cushion. While a foam cushion can be cumbersome and pricey, the S-Ergo Seating frame is lightweight and simple, offering the short-term wheelchair user an inexpensive option.
  • Outrigged Armrest – Spacious and comfortable, the outrigged design minimizes the chair’s overall width while still maintaining an ergonomic sitting space.
  • Extra Cushion – Unlike most of the wheelchairs on the market, S-Ergo 105 offers two layers of upholstery as standard. The upper cushion are detachable for cleaning purposes. The unique breathable material are comfort and easy to maintain.
  • Lightweight and Compact – The foldable backrest makes the Karma S-ERGO105 Aluminum Wheelchair easy to store and transport.
  • Durable Double Cross Bar Frame – The double cross-bar holds the entire wheelchair structure firmly and protects the safety on the road. Aircraft-grade aluminum frame is lightweight and durable, with a capacity of up to 115 kg.
  • Ergo Handrims – The new ergonomic handrims provide comfort and greater mobility for better propulsion and efficient braking.


S-ERGO SEATING SYSTEM

- The seating provides the wheelchair user with basic pressure relief without  having to purchase a foam cushion.

AEGIS MICROBE SHIELD

- The upholstery is treated with Aegis microbe shield, which is approved by FDA, EPA, EU, etc... it can inhibit bacterial and fungal growth.

COMPACT AND PORTABLE

- Storage and transport are much easier.

CRASH TEST APPROVED

- This means it is suitable to be used as a seat in a motor vehicle for transportation.

Features and Benefits
Product Specifications

Product Model S-Ergo 105
Nominal seat width (mm/in) 400 / 16
Nominal seat depth (mm/in)** 430 / 17
Front caster / Rear wheel size (in) 7 / 24
Backrest height (mm) 430
Headrest height above seat (mm) N/A
Armrest to seat distance (mm) 230
Front location of armrest structure (mm) 330
Seat surface height at front edge (mm) 500
Footrest to seat distance (mm) 360 ~ 435
Effective seat width (mm) 415
Effective seat depth (mm) 445
Seat plane angle (X°) 7
Backrest angle (X°) 13
Seat to backrest angle (X°) 96
Leg to seat angle (X°) 98
Overall length with legrest (mm) 1005
Overall width (mm) 590
Overall height (mm) 905
Folded length (mm) 980
Folded width (mm) 335
Folded height (mm) 740
Total mass (kg) 13.8
Mass of the heaviest part (kg) 9.4 (24Q)/ 13.2 (24F)
Maximum user weight (kg) 115
Minimum turning radius (mm) 780
Minimum turning radius without user (mm) 700
Pivot width (mm) 1180
Static stability downhill (X°) 18.5
Static stability uphill (X°) 10.0
Static stability sideways (X°) 17.5
Handrim diameter (mm) 520
Horizontal location of axle (mm) 0

Product Model S-Ergo 105
Nominal seat width (mm/in) 450 / 18
Nominal seat depth (mm/in) 430 / 17
Front caster / Rear wheel size (in) 7 / 24
Backrest height (mm) 430
Headrest height above seat (mm) N/A
Armrest to seat distance (mm) 230
Front location of armrest structure (mm) 330
Seat surface height at front edge (mm) 500
Footrest to seat distance (mm) 360 ~ 435
Effective seat width (mm) 465
Effective seat depth (mm) 445
Seat plane angle (X°) 7
Backrest angle (X°) 13
Seat to backrest angle (X°) 96
Leg to seat angle (X°) 98
Overall length with legrest (mm) 1005
Overall width (mm) 640
Overall height (mm) 905
Folded length (mm) 980
Folded width (mm) 335
Folded height (mm) 740
Total mass (kg) 14.0
Mass of the heaviest part (kg) 9.6 (24Q)/ 13.4 (24F)
Maximum user weight (kg) 115
Minimum turning radius (mm) 800
Minimum turning radius without user (mm) 720
Pivot width (mm) 1180
Static stability downhill (X°) 18.5
Static stability uphill (X°) 10.0
Static stability sideways (X°) 17.5
Handrim diameter (mm) 520
Horizontal location of axle (mm) 0

Certification

MOH Medical Device Authority (MDA) Registered
MMD Reg No: GA6765919-33289

Warranty

5 years warranty ( Frame Only )
