Ergo Lite 2 Ultra Light Travel Wheelchair KM2512 | Karma

SKU MWKMM01316
Original price RM 2,122.00 - Original price RM 2,122.00
Original price
RM 2,122.00
RM 2,122.00 - RM 2,122.00
Current price RM 2,122.00
Seat: 16"

Ergo Lite 2 is suitable for users of GMFCS level 4

Capable of walking with a walking frame but mostly relies on wheeled mobility at home and when out.

Ergo Lite

  • Weighing only 8.5kg, the Ergo Lite is KARMA’s lightest attendant-propelled wheelchair.
  • The compact design is ideal for wheelchair users who need a simple, lightweight wheelchair for short trips.
  • It is equipped with KARMA’s unique S-Ergo seating system.

Ultralight and Sturdy

  • We strive to make the caretaker’s life easier.
  • Weighing at a mere 8.5kg, the ultralight weight lowers the risk of back injury by reducing the physical effort required to lift it.
  • Sturdy and safe, we believe it is the lightest crashed-tested wheelchair available on the market.

Foldable Backrest and Frame

  • Allows for convenient storage and transportation.
  • With the foldable backrest and frame, it makes storage and transport much easier.

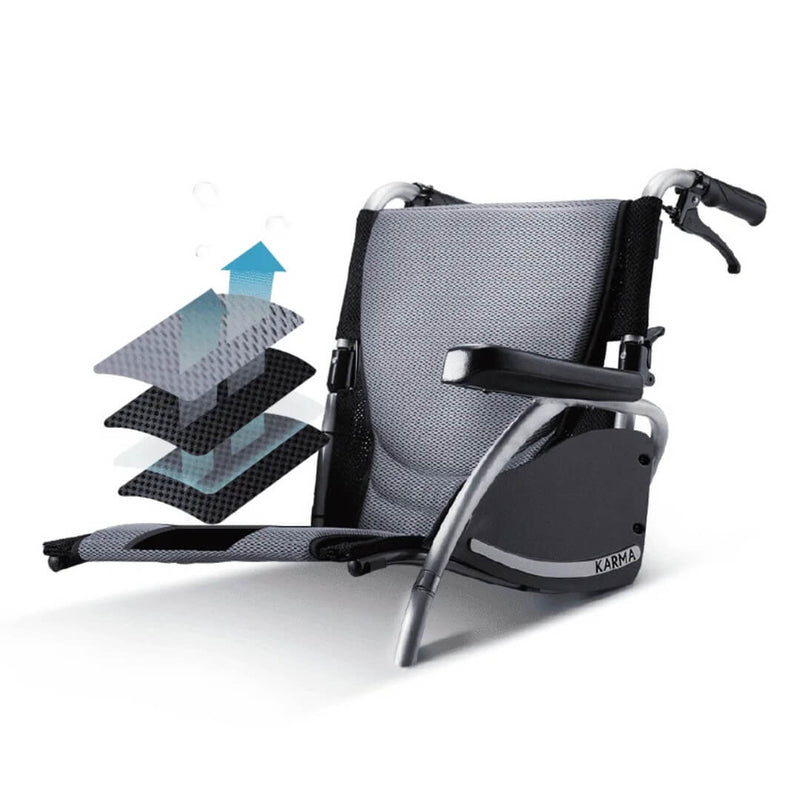

S-Ergo Seating System

  • The S-Ergo Seating is globally patented in many countries.
  • The seating provides the wheelchair user with a basic pressure relief without having to purchase to a foam cushion.
  • While a foam cushion can be cumbersome and pricy, the S-Ergo Seating frame is lightweight and simple, offering the short-term wheelchair user an inexpensive option.

Push & Pull Brake System

  • The innovative attendent brakes allow the caregiver access to the parking brake without leaning forward.
  • Just push the attendant brakes to park the chair, and pull to unlock.

Ultralight and Sturdy

  • Weighing at a mere 8.5kg, the ultralight weight lowers the risk of back injury by reducing the physical effort required to lift it.
  • Sturdy and safe, we believe it is the lightest crash-tested wheelchair available on the market.

AEGIS Microbe Shield

  • The upholstery is treated with Aegis microbe shield, which is approved by the FDA, EPA, EU, etc..
  • The anti-microbial upholstery inhibits bacterial and fungal growth, eliminates odour and is designed for easy cleaning. It is a shield for your health.

Foldable Backrest and Frame

  • Allows for convenient storage and transportation.

Crash Test Approved

  • The Ergo Lite is approved for transportation in accordance with ISO 7176-19.
  • This means it is suitable to be used as a seat in a motor vehicle for transportation.

Ergo Lite is suitable for users of

  • Users walk using a hand-held mobility device in most indoor settings.
Features and Benefits

Ultra lightweight and Sturdy

KARMA strive to make the caretaker’s life easier. The swing-away footrests and self-propelled rear wheels are detachable, reducing the weight to just 6 kg, making storing and transporting the Ergo Lite 2 a breeze

Detachable Swing-Away Footrests

Allows for easy transfer, on and off the wheelchair and detaches with no tools required.

Easy to Transport and Store

Convenient and suitable for elderly caregivers to take care of elderly users. Easy to carry out and fold for storage.

Available Options

Choose between the attendant-propelled wheelchair with 14″ rear wheels or the self-propelled wheelchair with 20″ rear wheels.

Ergo Handrim
(for 20″ Rear Wheel)

The ergonomic hand-rim gives more comfort and greater mobility for better propulsion and efficient braking.

Push & Pull Brake
(for 14″ Rear Wheel)

Karma’s Push & Pull brake system, which allows attendants to safely park the wheelchair without bending down to reach the wheel locks.Allow the user to get closer to tables.

Manual Ver.24

Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.

Product Specifications

ERGO LITE 2 Ultra Lightweight Folding Wheelchair - Karma
Product Model Ergo Lite 2 (KM-2512) 16"
Nominal seat width (mm/in)* 400 / 16
Nominal seat depth (mm/in)** 420 / 16
Front caster / Rear wheel size (in) 6 / 20
Backrest height (mm) 420
Headrest height above seat (mm) N/A
Armrest to seat distance (mm) 215
Front location of armrest structure (mm) 310
Seat surface height at front edge (mm) 480
Footrest to seat distance (mm) 360 ~ 410
Effective seat width (mm) 400
Effective seat depth (mm) 430
Seat plane angle (X°) 5
Backrest angle (X°) 11
Seat to backrest angle (X°) 96
Leg to seat angle (X°) 102
Overall length with legrest (mm) 930
Overall width (mm) 595
Overall height (mm) 900
Folded length (mm) 695
Folded width (mm) 280
Folded height (mm) 700
Total mass (kg) 10.7
Mass of the heaviest part (kg) 6.7 (20Q), 9.7 (20F)
Maximum user weight (kg) 100
Minimum turning radius (mm) 820
Minimum turning radius without user (mm) 735
Pivot width (mm) 1150
Static stability downhill (X°) 17.9
Static stability uphill (X°) 10.1
Static stability sideways (X°) 11.4
Handrim diameter (mm) 430
Horizontal location of axle (mm) 5

-
Product Model Ergo Lite 2 (KM-2512) 18"
Nominal seat width (mm/in)* 450 / 18
Nominal seat depth (mm/in)** 420 / 16
Front caster / Rear wheel size (in) 6 / 20
Backrest height (mm) 420
Headrest height above seat (mm) N/A
Armrest to seat distance (mm) 215
Front location of armrest structure (mm) 310
Seat surface height at front edge (mm) 480
Footrest to seat distance (mm) 360 ~ 410
Effective seat width (mm) 450
Effective seat depth (mm) 430
Seat plane angle (X°) 5
Backrest angle (X°) 11
Seat to backrest angle (X°) 96
Leg to seat angle (X°) 102
Overall length with legrest (mm) 930
Overall width (mm) 645
Overall height (mm) 900
Folded length (mm) 695
Folded width (mm) 295
Folded height (mm) 710
Total mass (kg) 10.9
Mass of the heaviest part (kg) 6.9 (20Q), 9.8 (20F)
Maximum user weight (kg) 100
Minimum turning radius (mm) 840
Minimum turning radius without user (mm) 760
Pivot width (mm) 1180
Static stability downhill (X°) 17.9
Static stability uphill (X°) 10.1
Static stability sideways (X°) 11.4
Handrim diameter (mm) 430
Horizontal location of axle (mm) 5

Certification

MOH Medical Device Authority (MDA) Registered
MMD Reg No: GA6765919-33289

Warranty

5 years warranty ( Frame Only )
