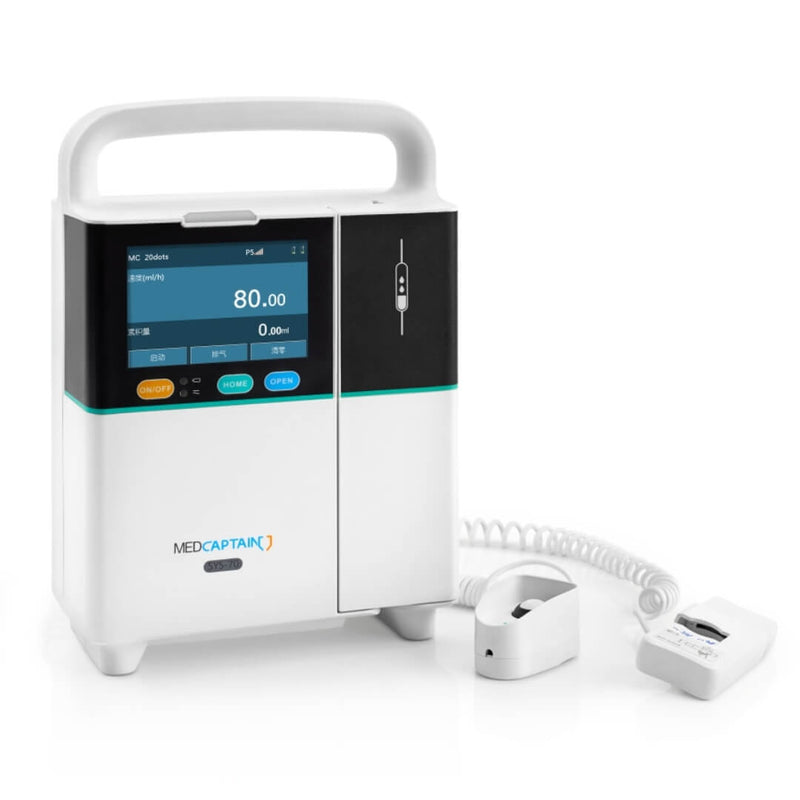

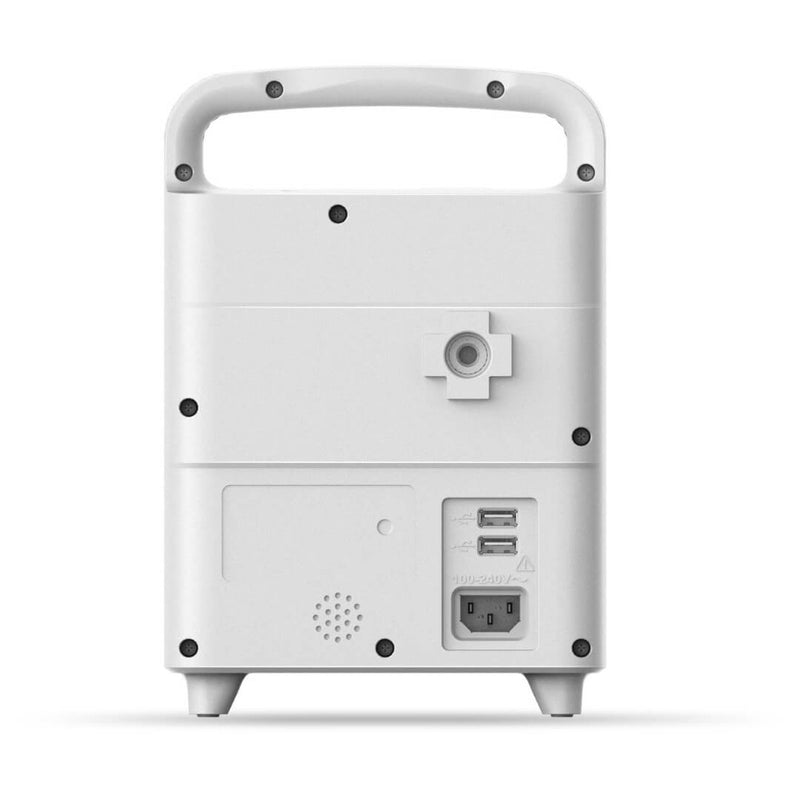

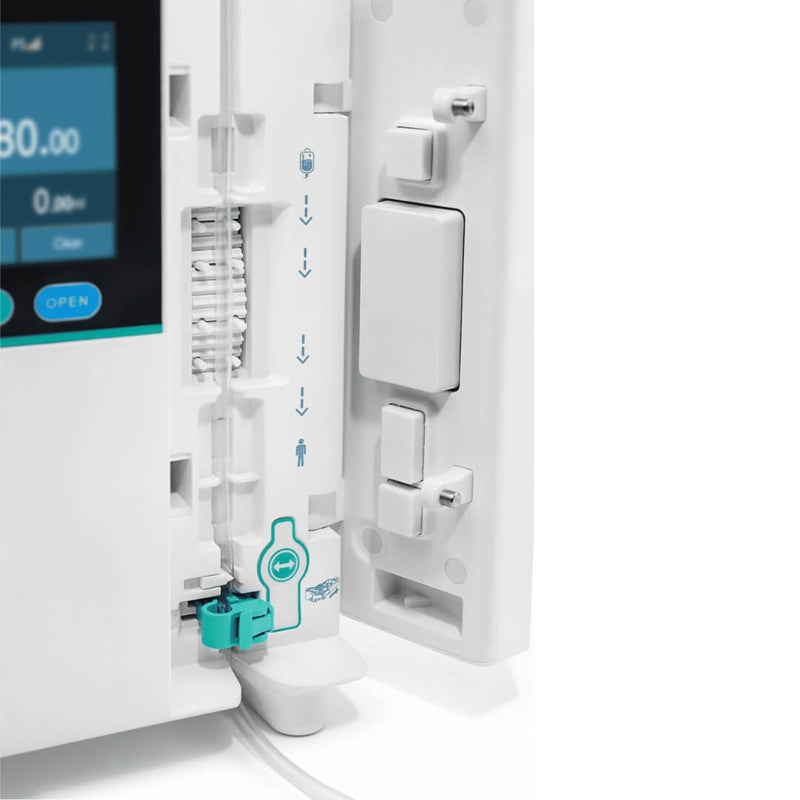

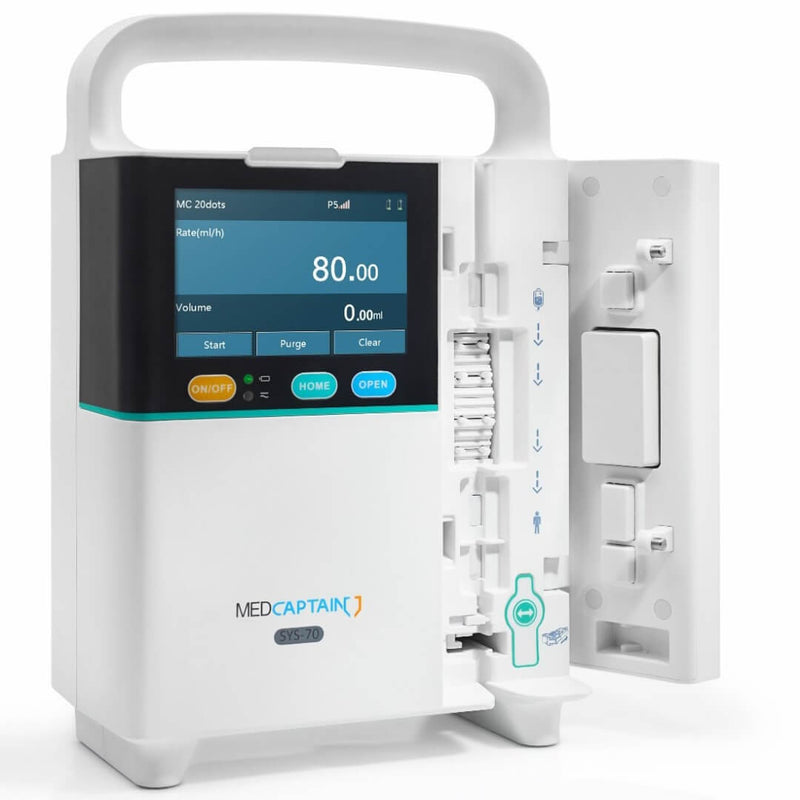

Infusion Pump SYS-70 | MedCaptain

Specifications

• Dimension: 160(W) x 236(H) x 92(D)mm

• Weight: About 1.42kg (including the battery of standard configuration)

• Date of Manufacture: See the label at the bottom of the product

• Classification: Type CF, Class I (Internally powered equipment), IP34
• Screen: 3.5" LCD touchscreen, 7 colours

• Compatible IV set: All disposable IV sets conform to the standard ISO 8536-4 or ISO 8536-8


Basic parameter

• Infusion mode: Rate, Time, Weight, Trapezia, Loading Dose, Sequence, Drip, Micro Mode
  Infusion rate range: 0.1-1500.0ml/h (or 0.03-500d/min)

• Increment:


1. 0.10-99.99ml/h (minimum increment: 0.01ml/h)

2. 100.0-999.9ml/h (minimum increment: 0.1ml/h)

3. 1000-1500ml/h (minimum increment: 1ml/h)

• VTBI range:

1. 0.10-99.99ml (minimum increment: 0.01 ml),
2. 100.0-999.9ml (minimum increment: 0.1 ml), 1000-9999ml (minimum increment: 1ml)

• Preset time: 1min-99h59min, minimum increment 1min

• Total volume display: 0-99999ml

• Accuracy: <±5%

• KVO rate: 0.1-30.00ml/h

• Manual/Rapid quantitative bolus rate: 1500ml/h

• Automatic bolus rate: 0.1-1500ml/h
• Air-bubble detection:

1. Single bubble size: 25, 50, 100, 200, 300, 500, and 800 (ul)

2. Cumulated bubble size:100ul/15min, 200ul/15min, 400ul/15min, 500ul/15min, 600ul/15min, 800ul 15min, and 1000ul/15min

• Occlusion level: 13 levels selection, 75mmHg-975mmHg

Special function

• Recent therapy: 20 recent therapies are recorded and can be used for rapid infusion

• Rate change during infusion: Infusion rate can be changed anytime during infusion, not necessary to stop infusion before change

• Auto screen lock: "OFF" and "ON".15s, 30s, 1min, 2min, 5min, 10min, 30min selectable when "ON". "OFF" by default

• Drug library: Maximum of 2000 drug types can be stored (default: 60 preset drug types)

• Repeat alarming: Alarm sounds again in 2 minutes, if there is still alarm after alarn is mute

• Event recording: Maximum 2000 events can be stored and play back

• Sound volume: 10 levels selectable

• Power supply switching: When AC/DC power supply is cut off, the infusion automatically switch to internal battery supply

Power supply

• AC power: 100-240 V AC, 50/60 Hz, 35 VA input power
  External DC power: DC 12V, 2A

• Internal battery:

1. Configuration1 (standard): one 11.1V 1500mAh lithium battery;

2. Configuration 2 (optional): two 11.1V 1500mAh lithium batteries;

3. Configuration 3 (optional): two 11.34V 2900mAh lithium batteries;


• Battery duration


1. Configuration 1: > 5 hours@25ml/h with a new battery

2. Configuration 2: >10 hours@25ml/h with a new battery

3. Configuration 3:>20hours@25ml/h with a new battery


• Charging time

• Configuration 1: 4 hours when powered off, Configuration 2: 8 hours when powered off


1. Configuration 3: 15 hours when powered off

Safety Requirement

• Operation conditions Temperature:


1. 5°C~40°C Humidity: 15%~95% RH, non-condensing
2. Pressure altitude: 53.9~106.0kPa

• Storage conditions:

1. Temperature: -20°C~+55°C Humidity: 10%-95% RH, non-condensing

2. Pressure altitude: 22.0~107.4kPa

Alarm

• Visual and acoustic alarm: Near Finished, Finished, OCCL, Up OCCL, Low Battery, Battery Empty, No Battery, No Power Supply, Air Bubble, No Drop Sensor, No Drop, Drop Error, Reminder Alarm, Standby End, Pre OCCL, and Door Open

Connectivity

• WiFi/Wired: To connect central infusion monitoring system, nursecall, and infusion pump information network

• Barcode scanning: Patient information input by barcode scanning

• Date interface: Supported, RS 485, USB 3.0, LAN and Wi-Fi (optional)

Mounting

• Handle: Available

• Pole clamp direction: Can be mounted at different directions, 90"/180"/270"/360"
